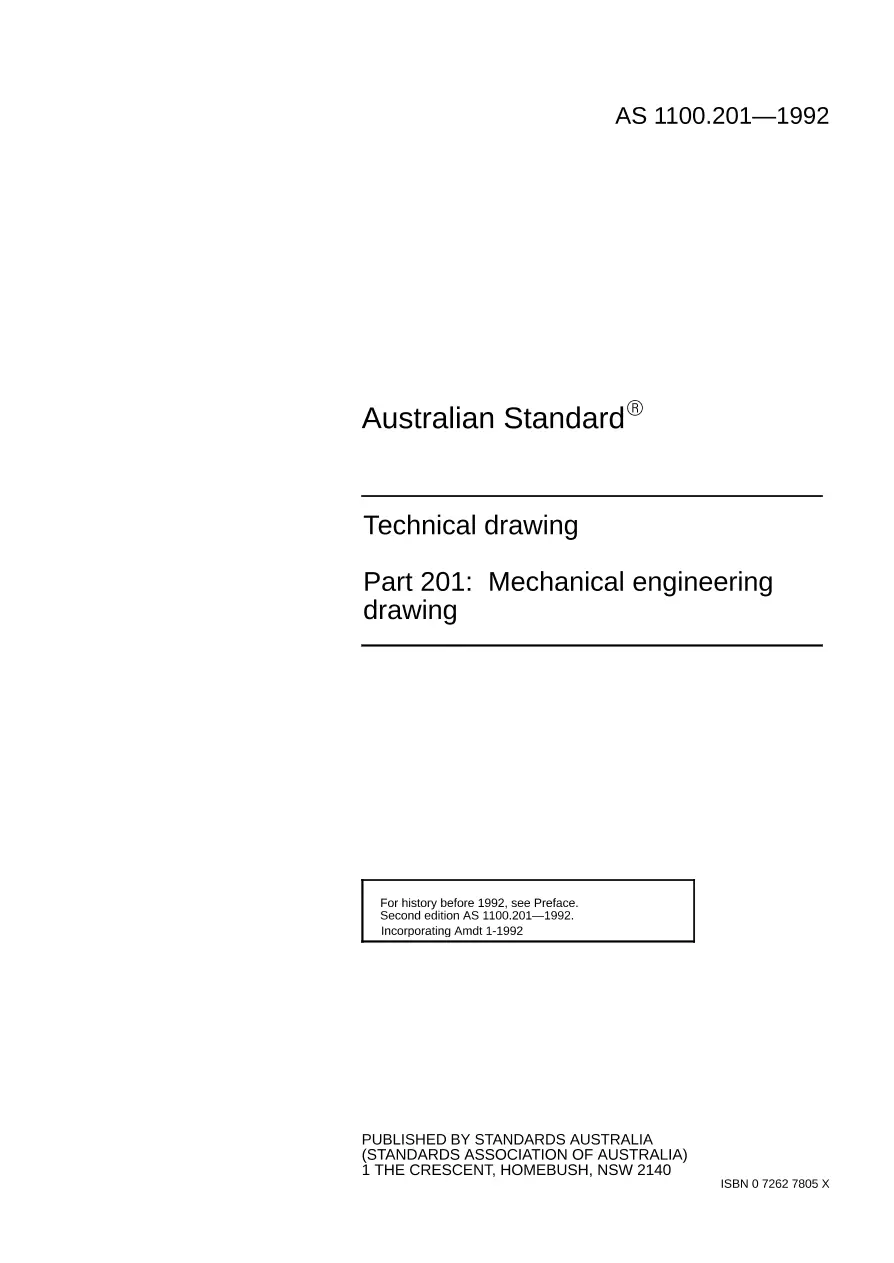

Sets out recommendations for mechanical engineering drawing practice. Provides information on surface texture and welding, and the simplified representation of pipelines. Provides details on springs, gears, splines, rolling element bearings, seals and knurling. Appendices provide guidance on the tolerance of machined components and castings.
