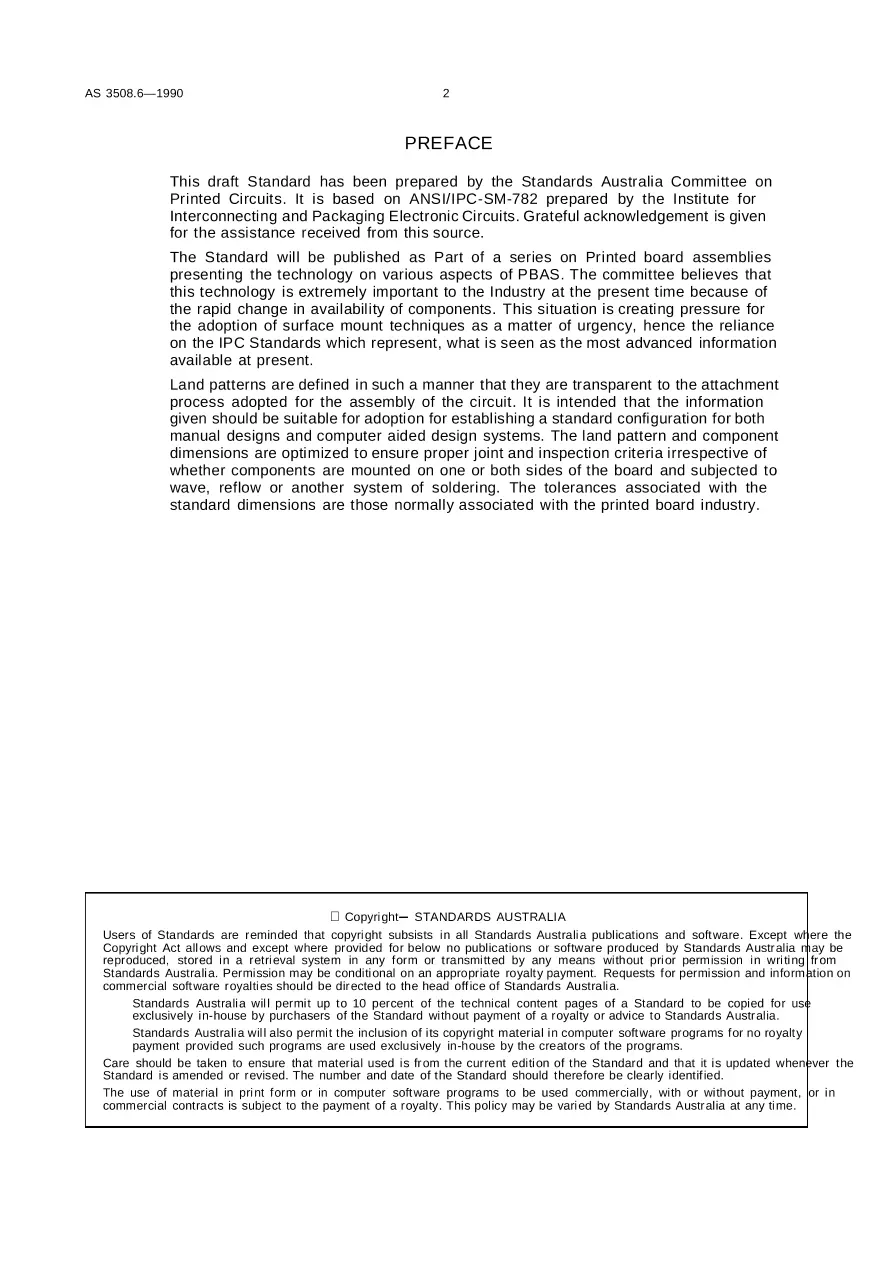

Defines land patterns in a way that is transparent to the attachment process adopted for assembly of the assembly. The information given is suitable for establishing a standard configuration for both manual designs and computer aided systems. The land pattern and component dimensions are optimized to ensure proper joint and inspection criteria irrespective of the method of mounting or the method of soldering adopted.
