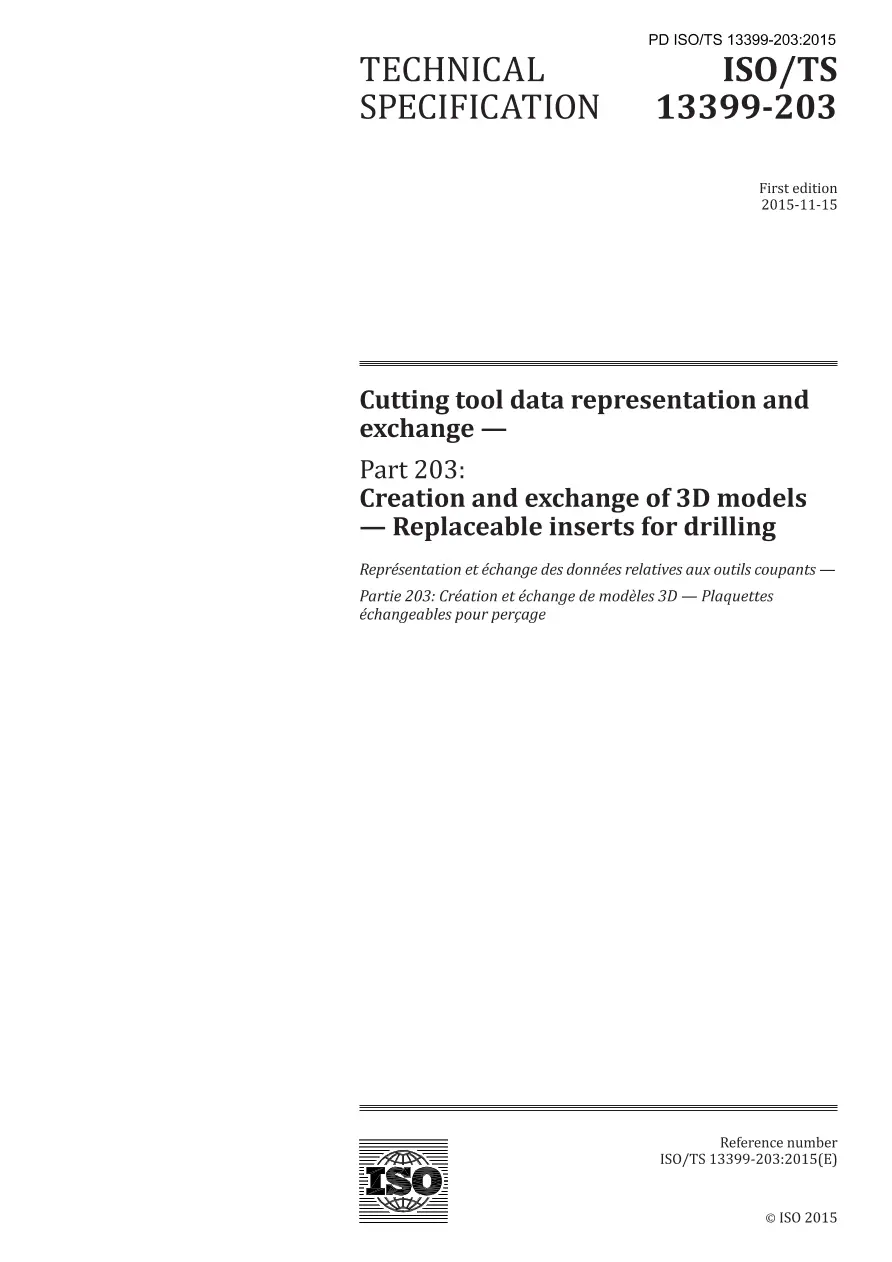

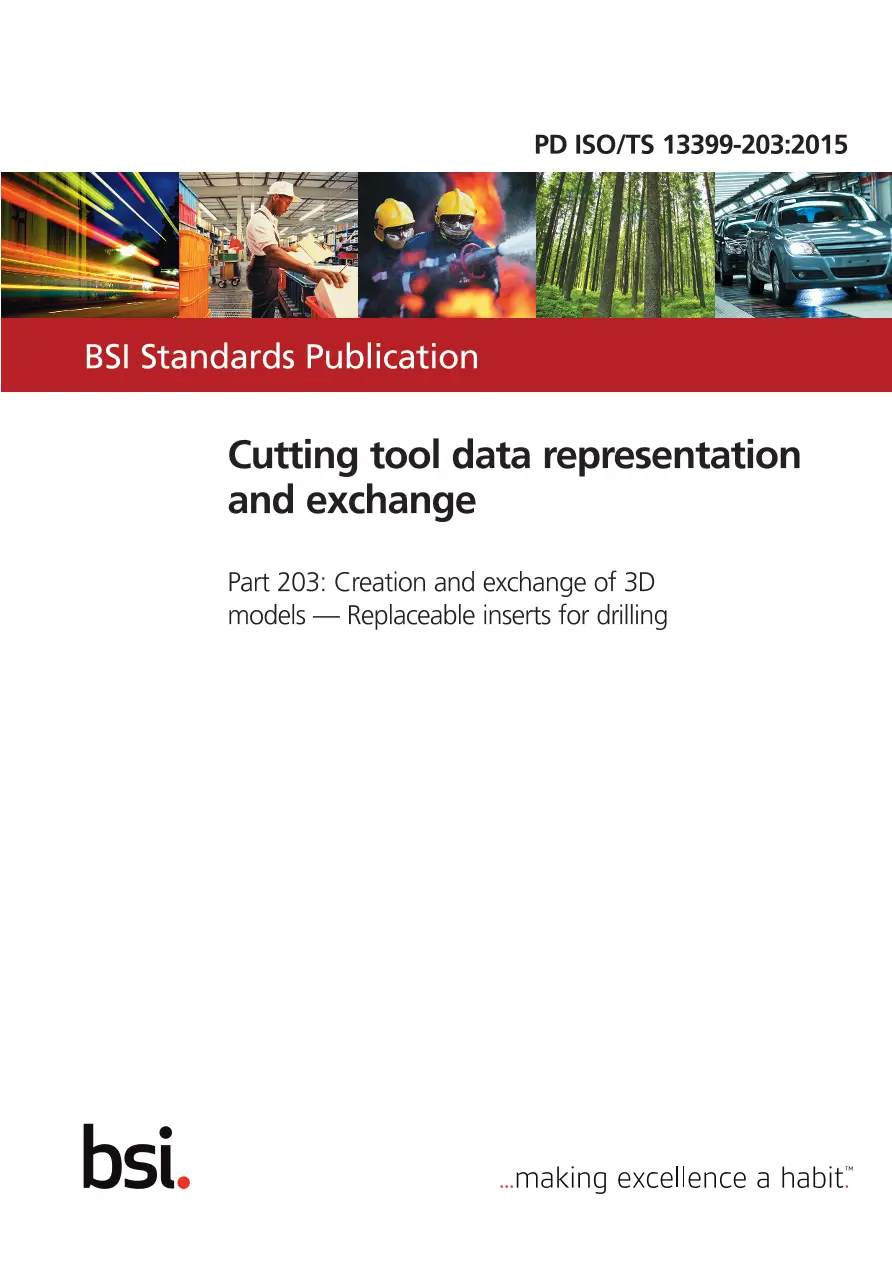

BS PD ISO/TS 13399-203:2015 specifies a concept for the design of cutting items, limited to any kind ofreplaceable inserts for drilling, using related properties and domains of values.This part of ISO 13399 specifies a common way of designing simplified models that contain the following:
- definitions and identification of the design features of replaceable inserts for drilling, with a link tothe properties used;
- definitions and identification of the internal structure of the 3D model that represents the featuresand properties of replaceable inserts for drilling;
- applications where these standard data may be stored or referenced;
- creation and exchange of simplified 3D models for cutting tools;
- creation and exchange of simplified 3D models for tool items;
- creation and exchange of simplified 3D models for other cutting items not described in this partof ISO 13399;
- creation and exchange of simplified 3D models for adaptive items;
- creation and exchange of simplified 3D models for assembly items and auxiliary items.
