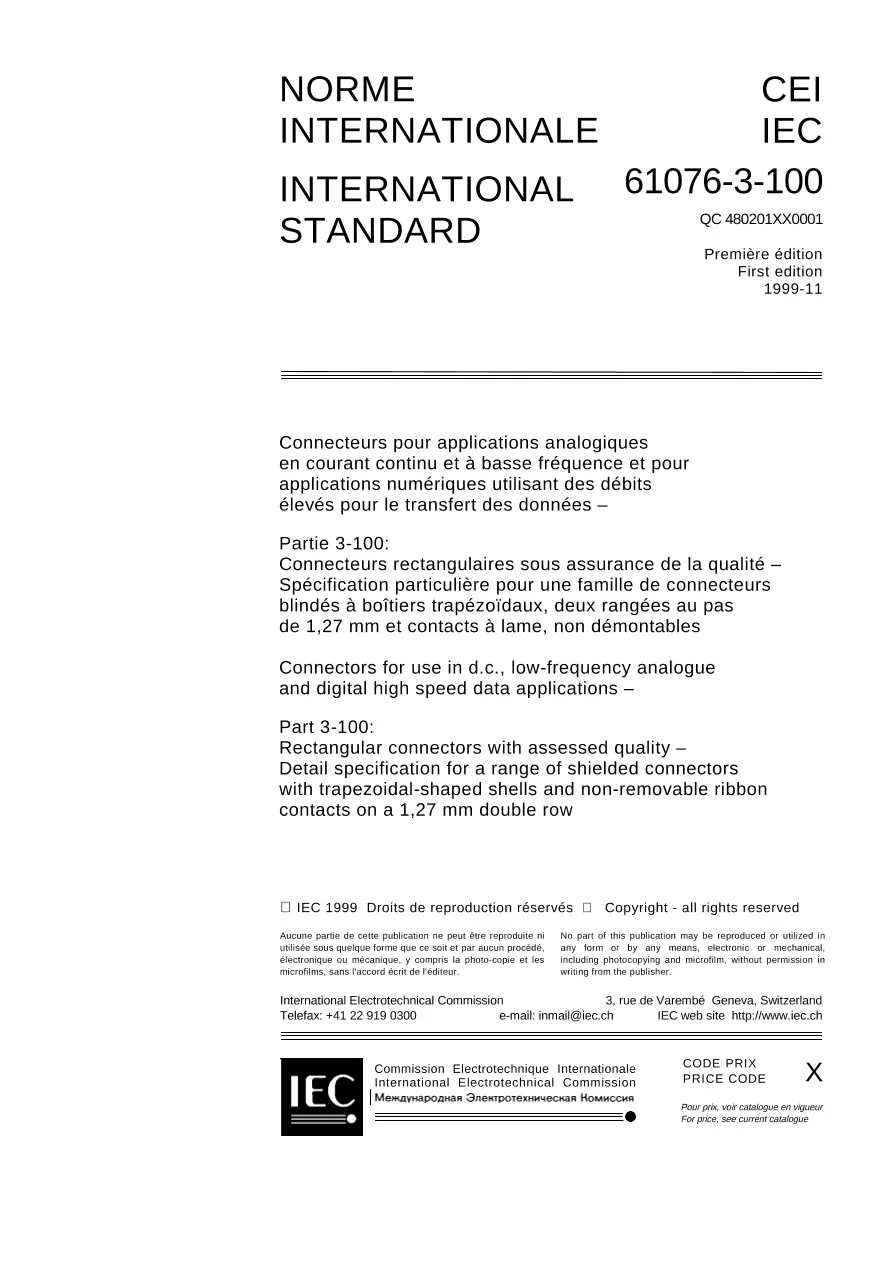

IEC 61076-3-100 Ed. 1.0 b:1999

Connectors for use in d.c., low-frequency analogue and digital high speed data applications - Part 3-100: Rectangular connectors with assessed quality - Detail specification for a range of shielded connectors with trapezoidal-shaped shells and non-removable ribbon contacts on a 1,27 mm double row

International Electrotechnical Commission , 11/16/1999

Publisher: IEC

File Format: PDF

$164.00$329.00

Description

IEC 61076-3-100:1999 applies to a range of shielded two-part connectors with trapezoidal-shaped shells and non-removable ribbon contacts on 1,27 mm double rows. The fixed connectors are provided with a post either for dip solder (type A, B, C, D) or non-accessible insulation displacement terminations (type E). The free connectors are provided with non-accessible insulation displacement terminations.

Published: 11/16/1999

Pages: 81

File Size: 1 file , 710 KB

Language: English, French

Note: This product is unavailable in Ukraine, Russia, Belarus
