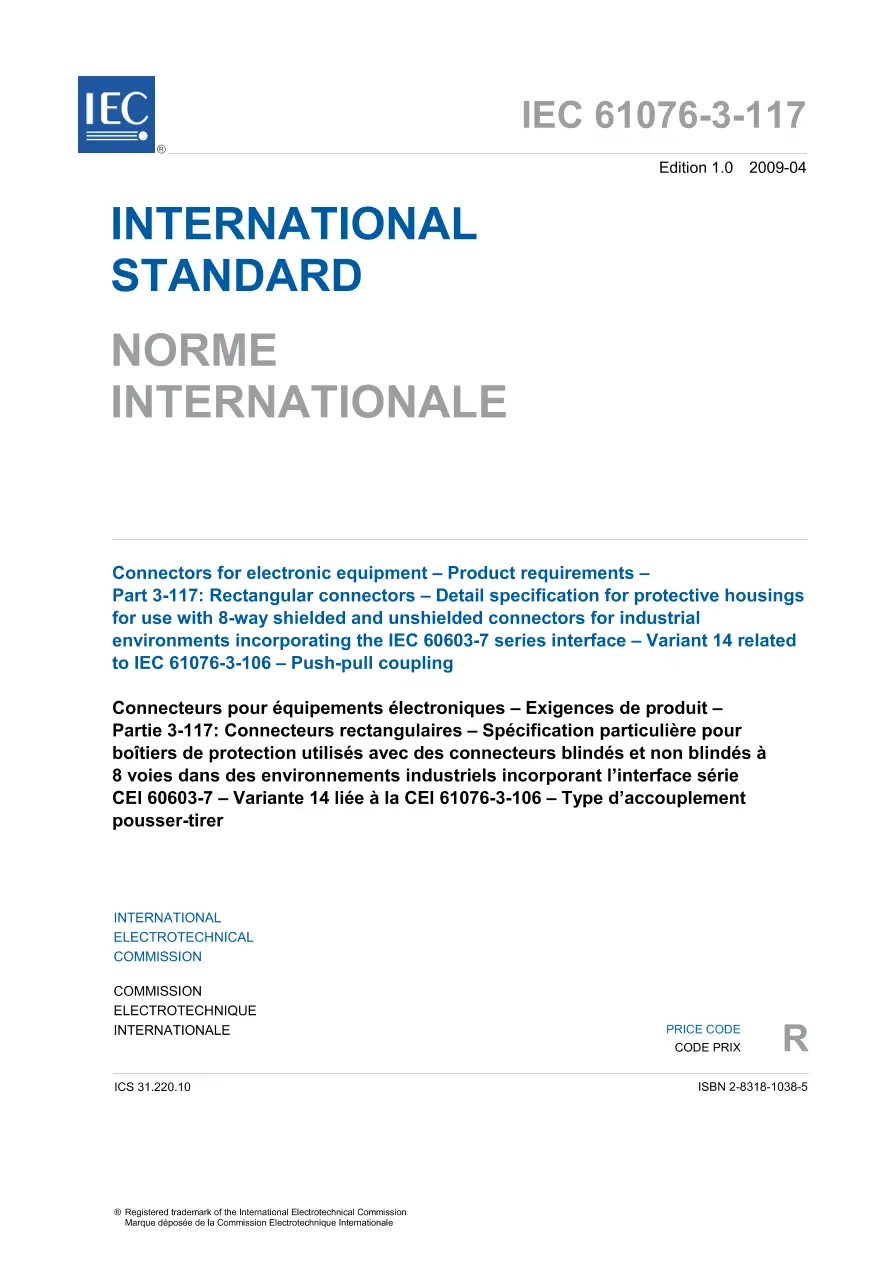

IEC 61076-3-117 Ed. 1.0 b:2009

Connectors for electronic equipment - Product requirements - Part 3-117: Rectangular connectors - Detail specification for protective housings for use with 8-way shielded and unshielded connectors for industrial environments incorporating the IEC 60603-7 series interface - Variant 14 related to IEC

International Electrotechnical Commission , 04/29/2009

Publisher: IEC

File Format: PDF

$72.00$145.00

Description

IEC 61076-3-117:2009 covers rectangular protective housings with push-pull coupling for upgrading existing 8-way shielded and unshielded connectors utilizing the interface described in IEC 60603-7-2, IEC 60603-7-3, IEC 60603-7-4, IEC 60603-7-41, IEC 60603-7-5, IEC 60603-7-51, IEC 60603-7-7 and IEC 60603-7-71 to IP65 and IP67 ratings according to IEC 60529, for use in industrial environments. Common mating configurations for all variants of the 8-way shielded and unshielded connectors are defined in IEC 60603-7.

Published: 04/29/2009

Pages: 37

File Size: 1 file , 1 MB

Language: English, French

Note: This product is unavailable in Ukraine, Russia, Belarus
