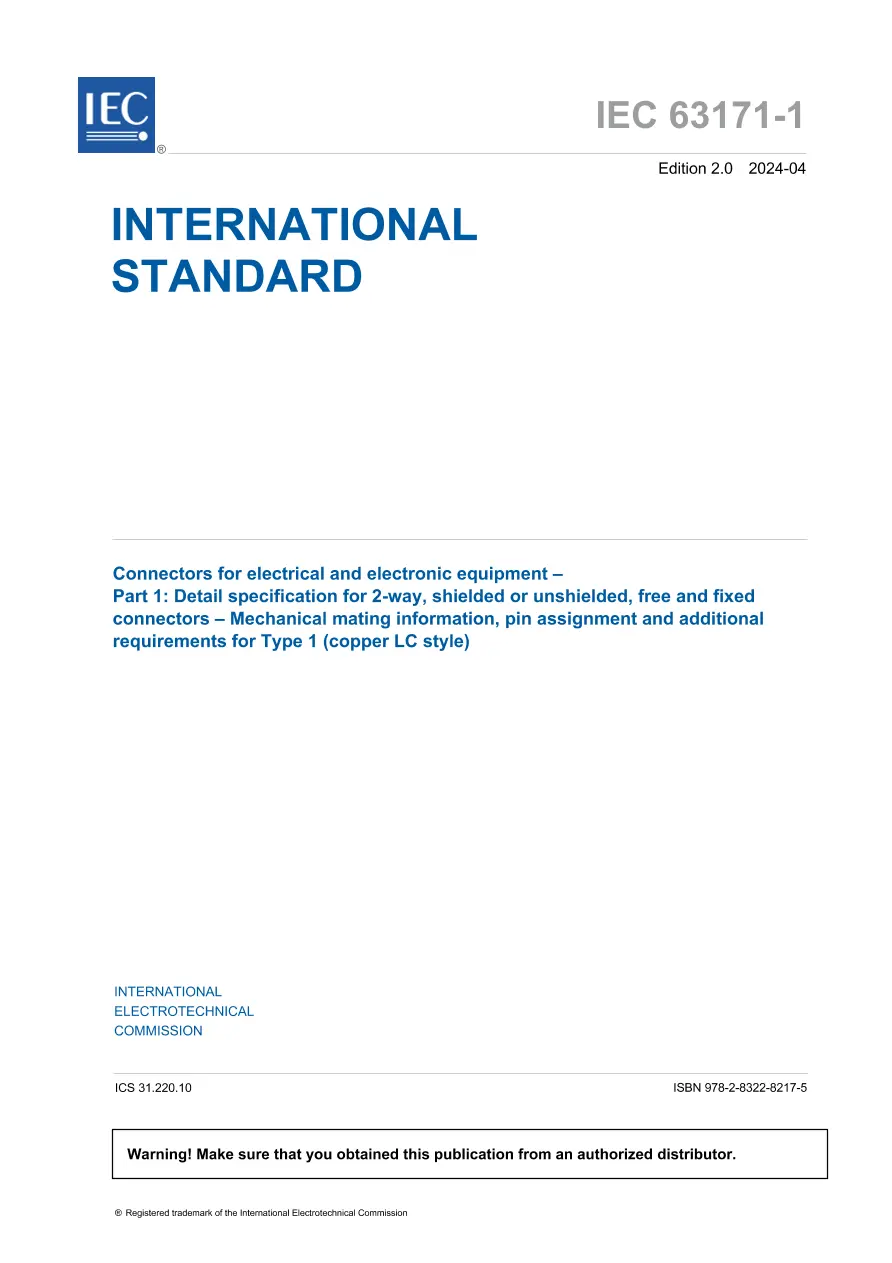

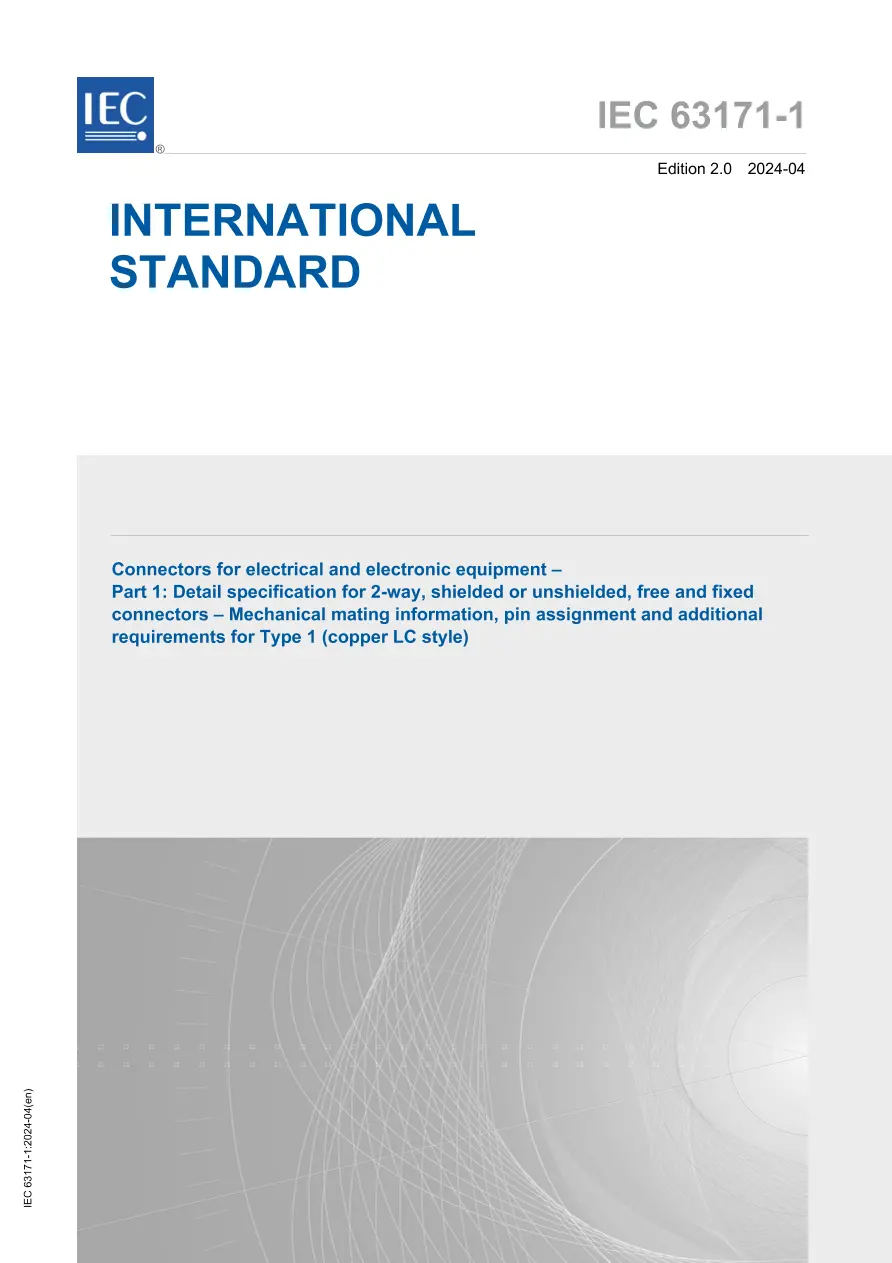

IEC 63171-1 Ed. 2.0 en:2024

Connectors for electrical and electronic equipment – Part 1: Detail specification for 2-way, shielded or unshielded, free and fixed connectors – Mechanical mating information, pin assignment and additional requirements for Type 1 (copper LC style)

International Electrotechnical Commission , 04/01/2024

Publisher: IEC

File Format: PDF

$96.00$193.00

Description

IEC 63171-1 Ed. 2.0 en:2024 PDF

This part of IEC 63171 covers two-way, shielded or unshielded, free and fixed connectors known as Type 1, for balanced single-pair data transmission with frequencies up to 600 MHz and with current carrying capacity up to 2,0 A at 60 °C.

It specifies the common dimensions, and provides the mechanical, electrical, signal integrity, and environmental characteristics, the reliability specifications and corresponding tests for these connectors.

Published: 04/01/2024

Pages: 26

File Size: 1 file , 1.3 MB

ISBN: 9782832282175

Note: This product is unavailable in Ukraine, Russia, Belarus, Canada
