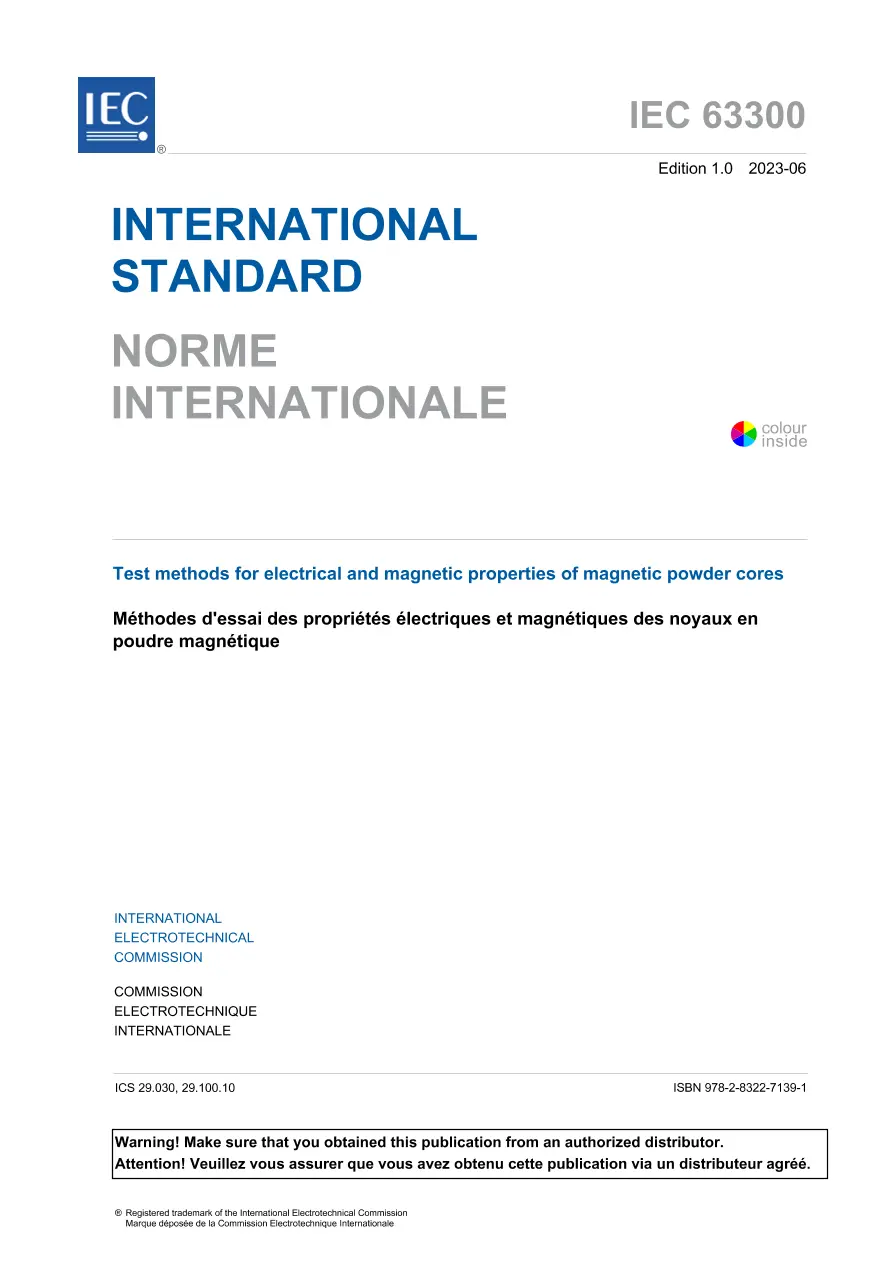

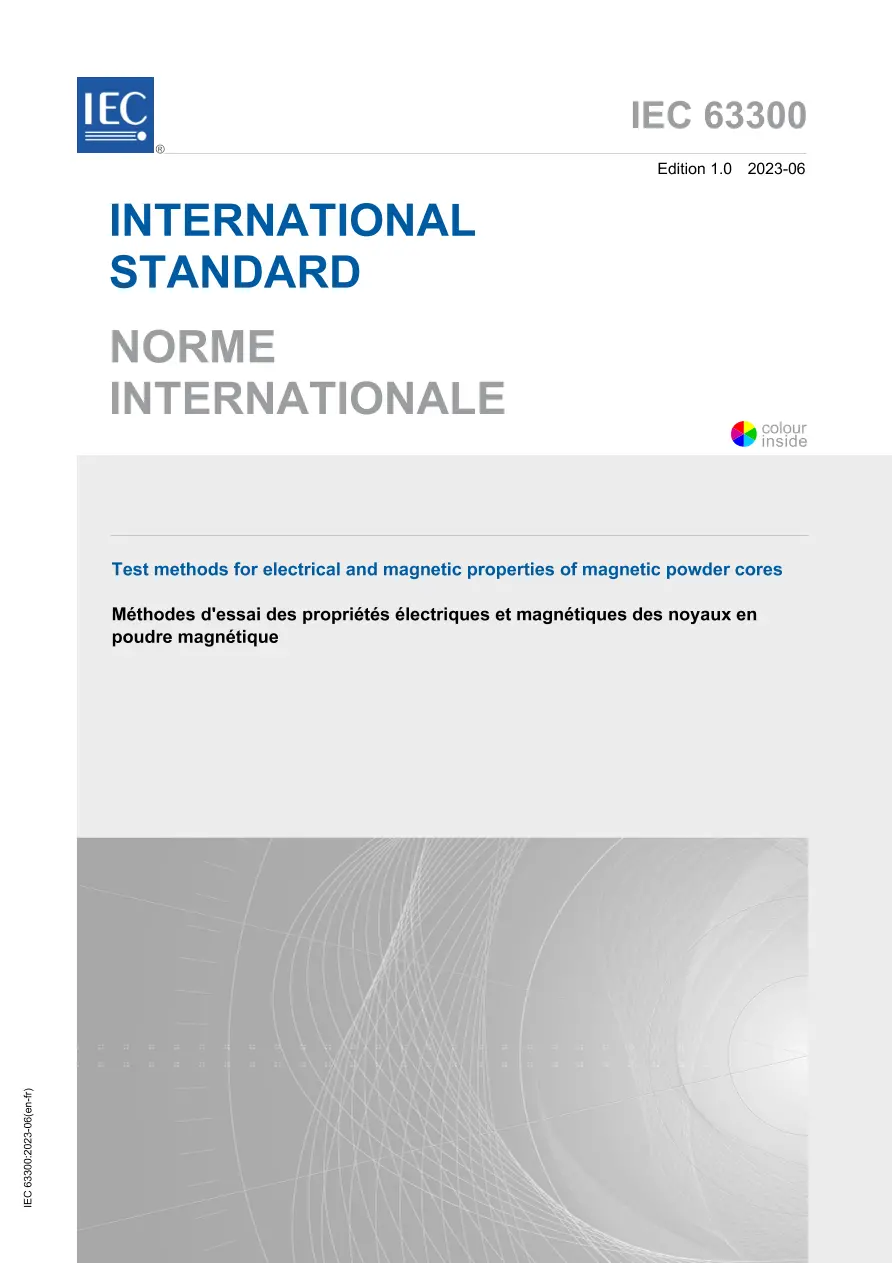

IEC 63300 Ed. 1.0 b:2023

This document provides the test methods for the electrical and magnetic properties of magnetic powder cores used for inductive components in electronics equipment, switch-mode power supplies and power conversion equipment, and introduces measuring principles, scope of application and matters of importance for each method.

The parameters used to characterize the magnetic powder cores include: inductance factor, effective permeability, complex relative permeability, temperature coefficient of permeability, frequency coefficient of permeability, DC bias characteristic, power loss, and quality factor. This document is the basis for determining the characteristic parameters of magnetic powder cores.
