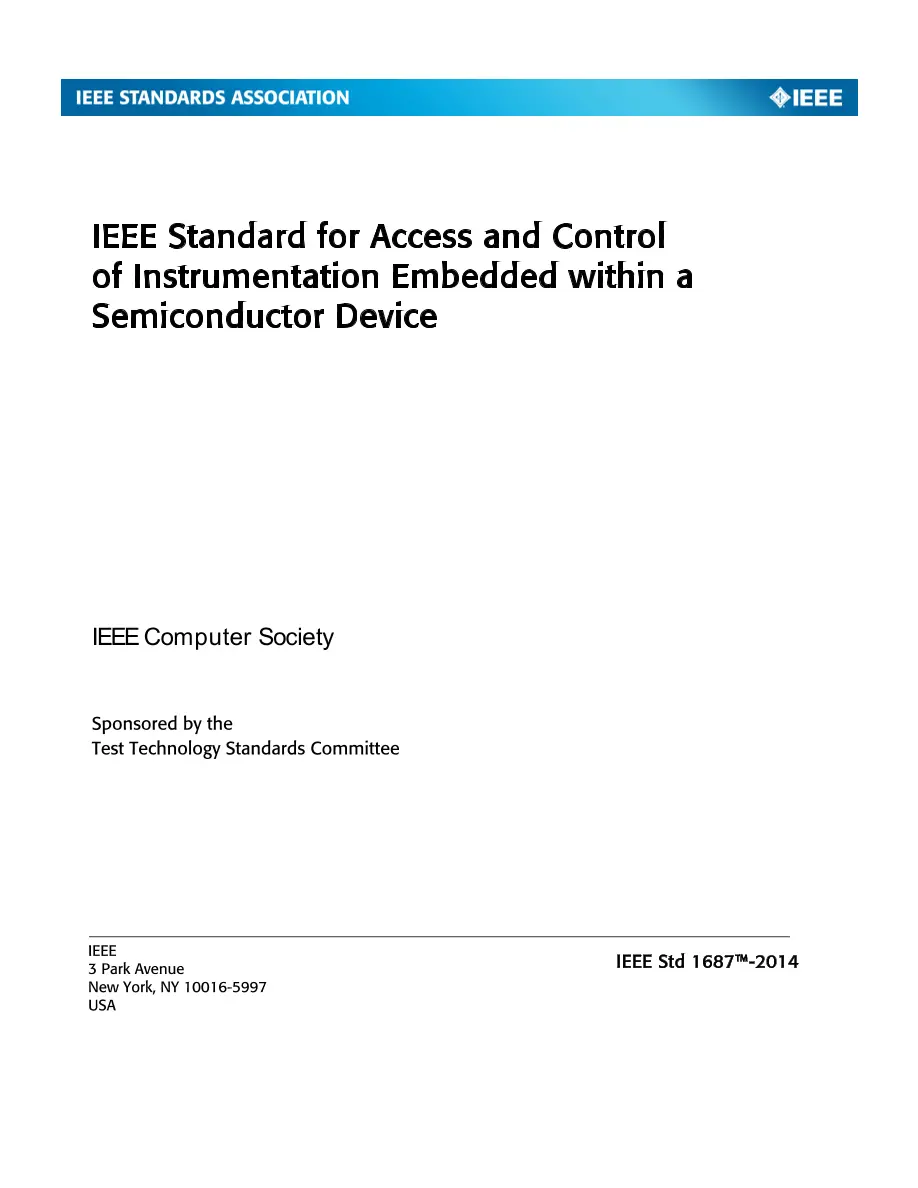

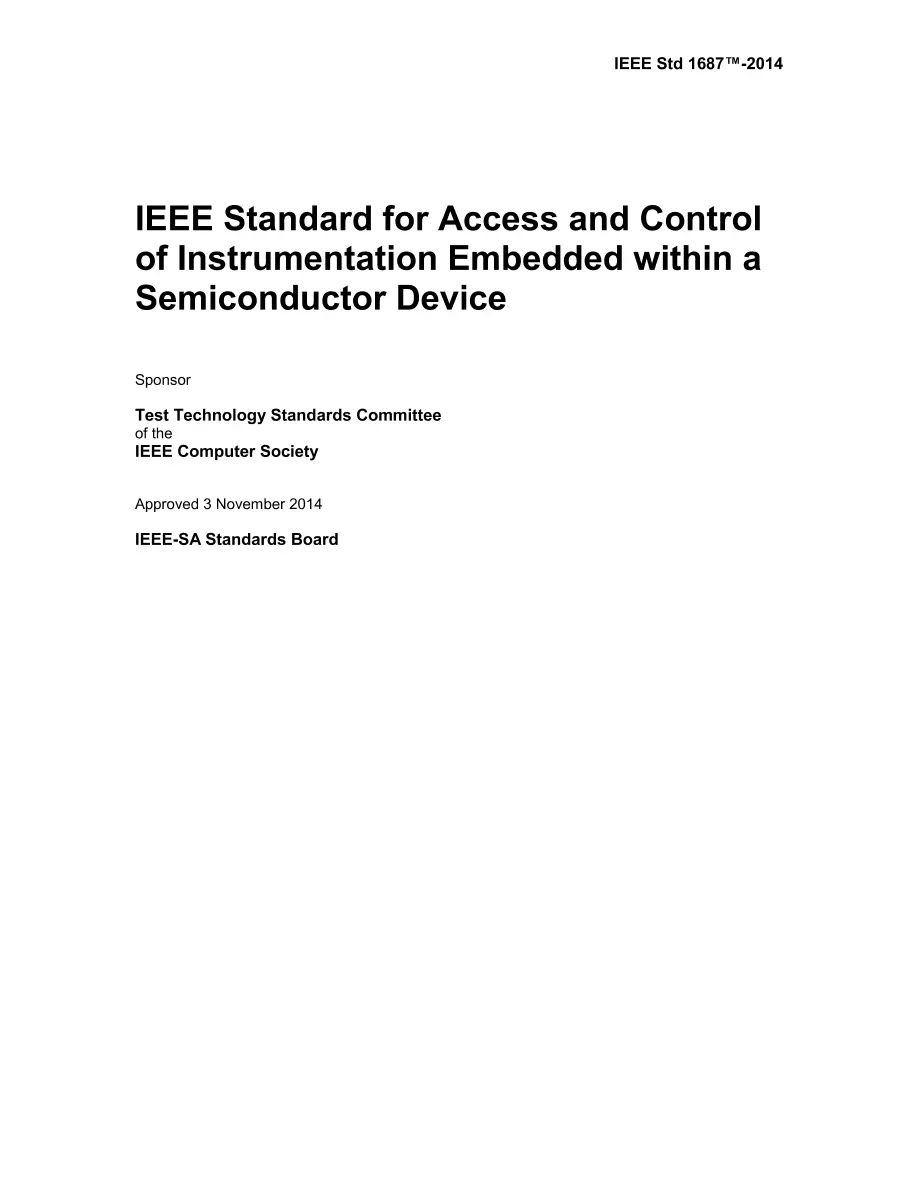

IEEE 1687-2014

IEEE 1687-2014 PDF

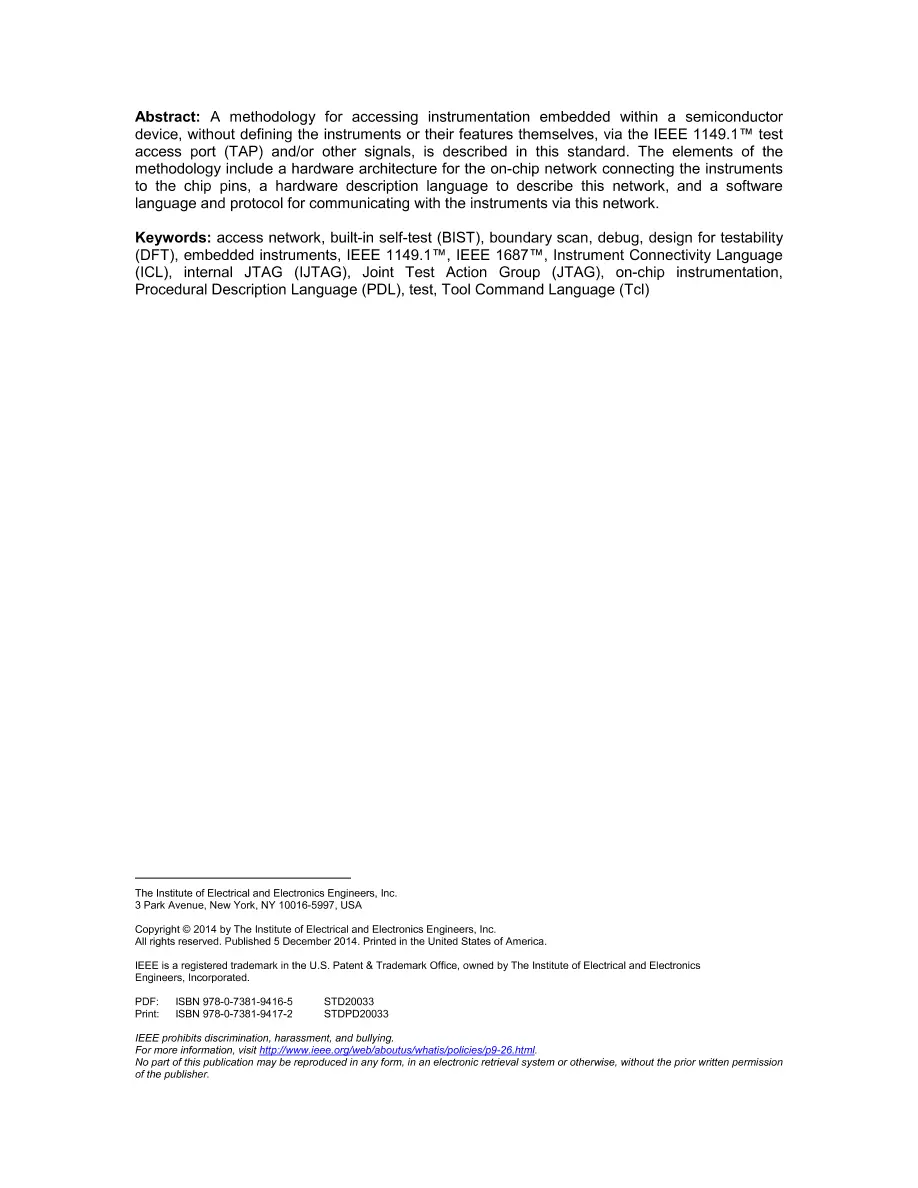

This standard develops a methodology for access to embedded instrumentation, without defining the instruments or their features themselves, via the IEEE 1149.1(TM) test access port (TAP) and additional signals that may be required. The elements of the methodology include a description language for the characteristics of the features and for communication with the features, and requirements for interfacing to the features. IEEE Std 1149.1 specifies circuits to be embedded within a semiconductor device to support board test; namely, the TAP, TAP Controller, and a number of internal registers. In practice the TAP and TAP Controller are being used for other functions well beyond boundary scan in an ad-hoc manner across the industry to access a wide variety of embedded instruments. The purpose of the IEEE 1687 initiative is to provide an extension to IEEE Std 1149.1 specifically aimed at using the TAP to manage the configuration, operation, and collection of data from this embedded instrumentation circuitry. New IEEE Standard - Active. A methodology for accessing instrumentation embedded within a semiconductor device, without defining the instruments or their features themselves, via the IEEE 1149.1(TM) test access port (TAP) and/or other signals, is described in this standard. The elements of the methodology include a hardware architecture for the on-chip network connecting the instruments to the chip pins, a hardware description language to describe this network, and a software language and protocol for communicating with the instruments via this network.
