• SAE AS6369

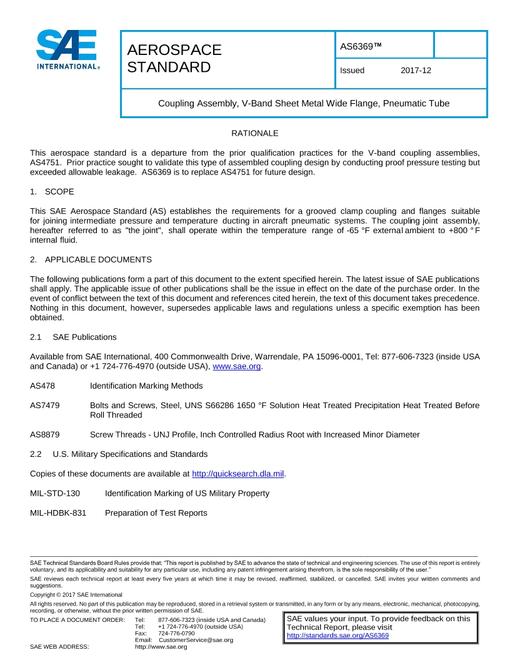

SAE AS6369

Coupling Assembly, V-Band Sheet Metal Wide Flange, Pneumatic Tube

SAE International , 12/12/2017

Publisher: SAE

File Format: PDF

$57.00$115.00


This SAE Aerospace Standard (AS) establishes the requirements for a grooved clamp coupling and flanges suitable for joining intermediate pressure and temperature ducting in aircraft pneumatic systems. The coupling joint assembly, hereafter referred to as "the joint", shall operate within the temperature range of -65 Degrees F external ambient to +800 Degrees F internal fluid.
