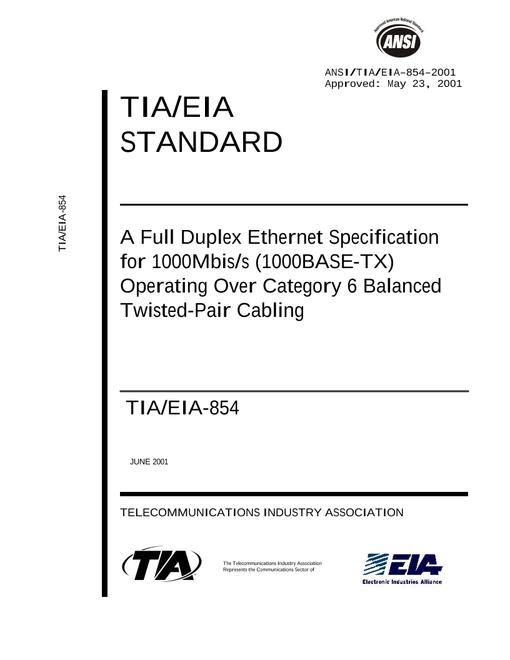

This Standard specifies a 1000BASE-TX PHY layer as defined in the ISOAEC Open Systems Interconnection (OSI) reference model. Included in this specification will be the required scrambling, coding, and modulation necessary to provide a 10-10 or less bit error rate. Specifications include a MAC layer interface with 8 bit wide data bus, transmitheceive clock, error, and control; an optional ten bit PMD interface; a MD1 interface; and a dedicated channel of 100 meters of category 6 twisted-pair cabling. The 1000BASE-TX PHY will support a full duplex data rate of 1000Mbit/s.
W/D NO S/S
