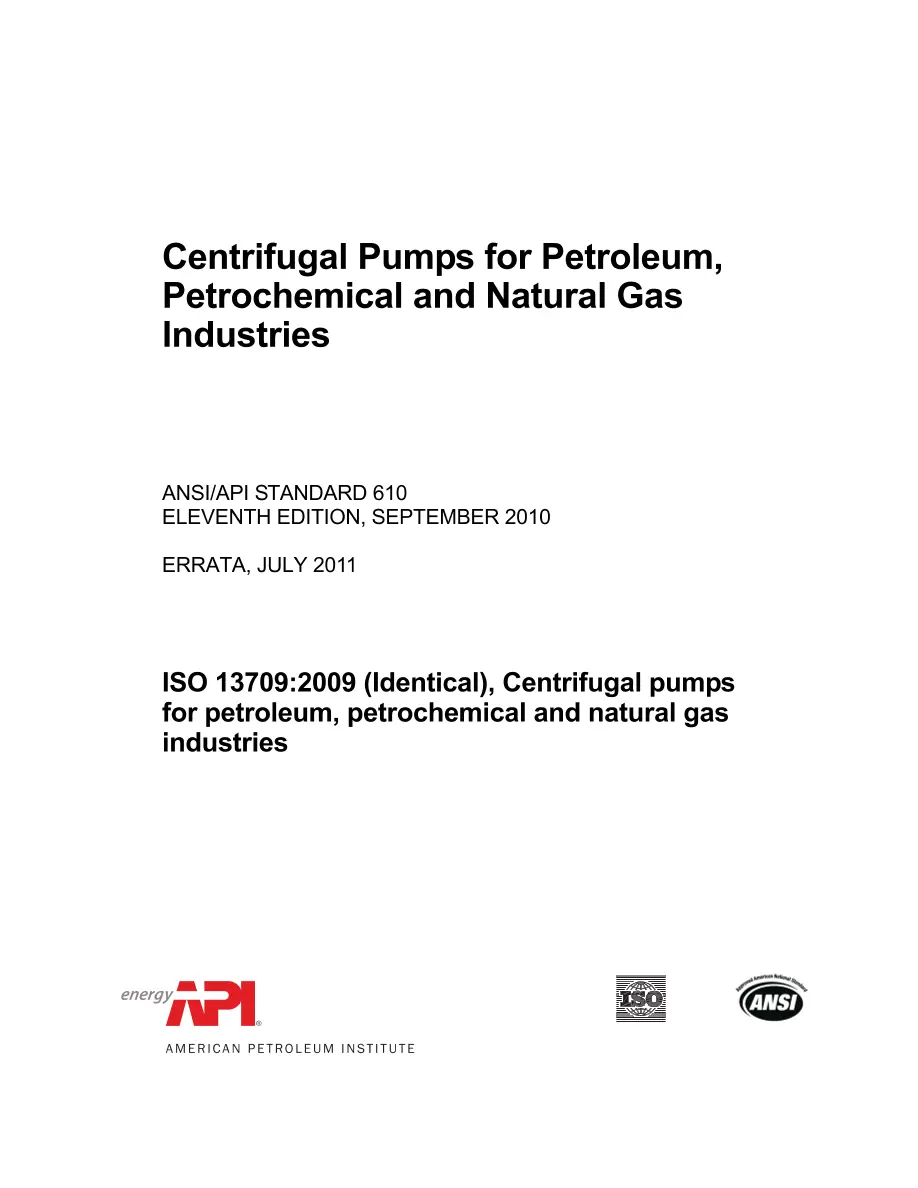

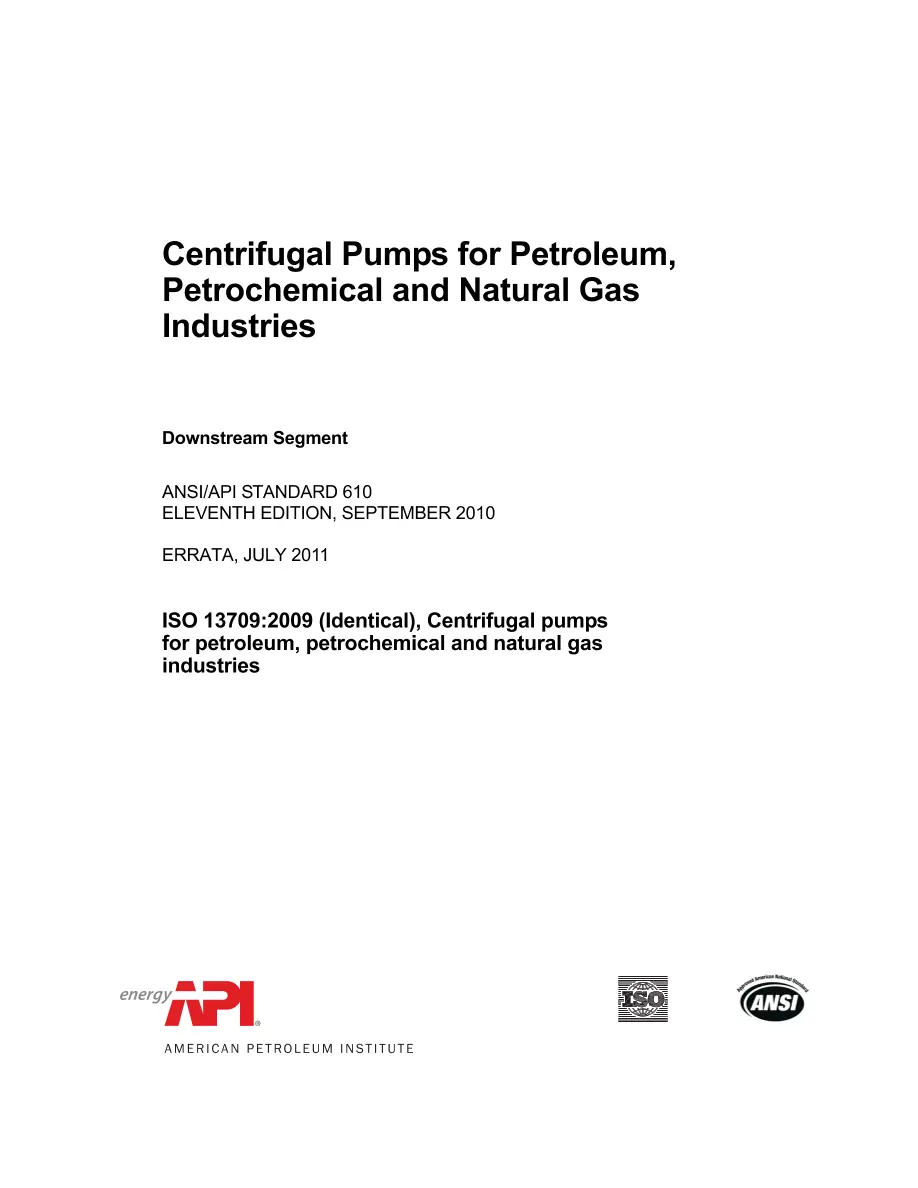

API Std 610:2010

Don't forget to order the datasheets related to this standard!This International Standard is applicable to overhung pumps, between-bearings pumps and vertically suspended pumps. Clause 9 provides requirements applicable to specific types of pumps. All other clauses of this International Standard are applicable to all pump types. Illustrations are provided of the various specific pump types and the designations assigned to each specific type.Relevant industry operating experience suggests pumps produced to this International Standard are cost effective when pumping liquids at conditions exceeding any one of the following:

• discharge pressure (gauge) 1 900 kPa (275 psi; 19,0 bar)
• suction pressure (gauge) 500 kPa (75 psi; 5,0 bar)
• pumping temperature 150°C (300°F)
• rotative speed 3 600 r/min
• rated total head 120 m (400 ft)
• impeller diameter, overhung pumps 330 mm (13 in)

This edition of API 610 is the identional national adoption of ISO 13709:2009, Centrifugal Pumps for Petroleum, Petrochemical and Natural Gas Industries.NOTE: For sealless pumps, reference can be made to API Std 685. For heavy duty pump applications in industries other than petroleum, petrochemical and gas processing, reference can be made to ISO 9905.Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including anyamendments) applies.ISO 7-1, Pipe threads where pressure-tight joints are made on the threads - Part 1: Dimensions, tolerances and designationISO 228-1, Pipe threads where pressure-tight joints are not made on the threads - Part 1: Dimensions, tolerances and designationISO 261, ISO general purpose metric screw threads - General planISO 262, ISO general purpose metric screw threads - Selected sizes for screws, bolts and nutsISO 281:2007, Rolling bearings - Dynamic load ratings and rating lifeISO 286 (all parts), ISO system of limits and fits
