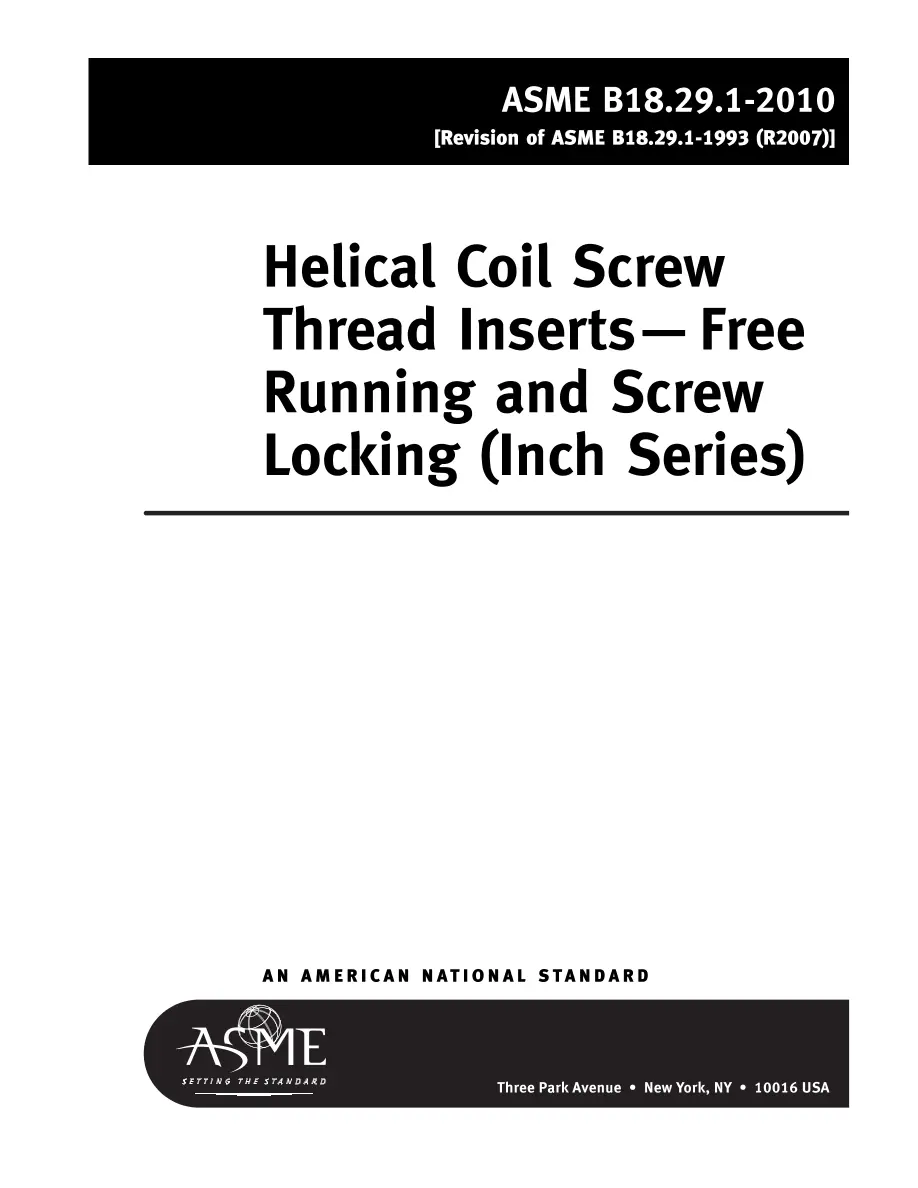

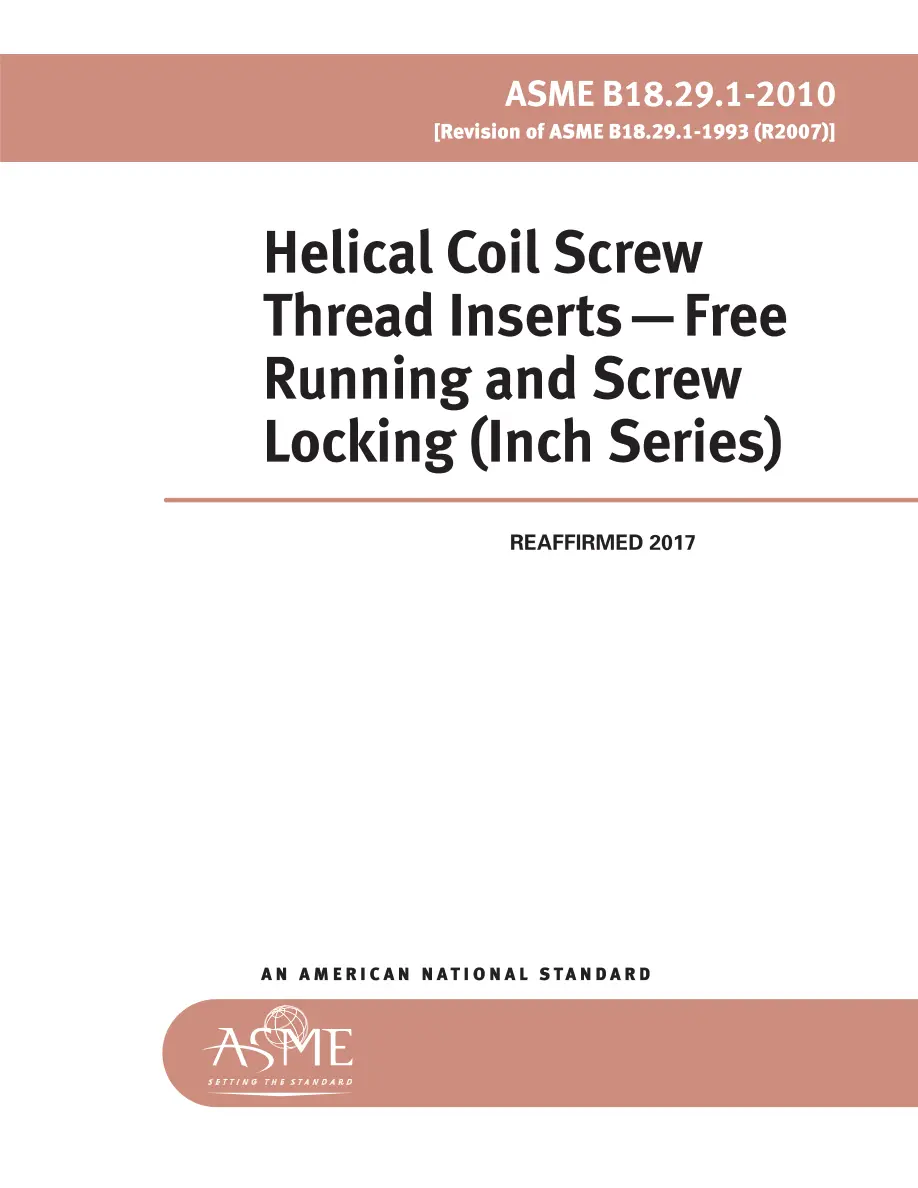

ASME B18.29.1-2010 (R2017)

Helical Coil Screws Thread Inserts-Free Running and Screw Locking (Inch Series)

ASME International , 08/16/2010

Publisher: ASME

File Format: PDF

$19.00$39.00

Description

ASME B18.29.1-2010 (R2017) PDF

This Standard is intended to delineate the dimensional data for the inch series helical coil screw thread insert and the threaded hole into which it is installed. Appendices that describe insert selection, STI (Screw Thread Insert) taps, gages and gaging, insert installation, and removal tooling are also included. The inclusion of dimensional data in this Standard is not intended to imply that all products described are stock sizes. Consumers should consult with manufacturers concerning availability.

Published: 08/16/2010

Pages: 36

File Size: 1 file , 800 KB

ISBN: 9780791832974

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
