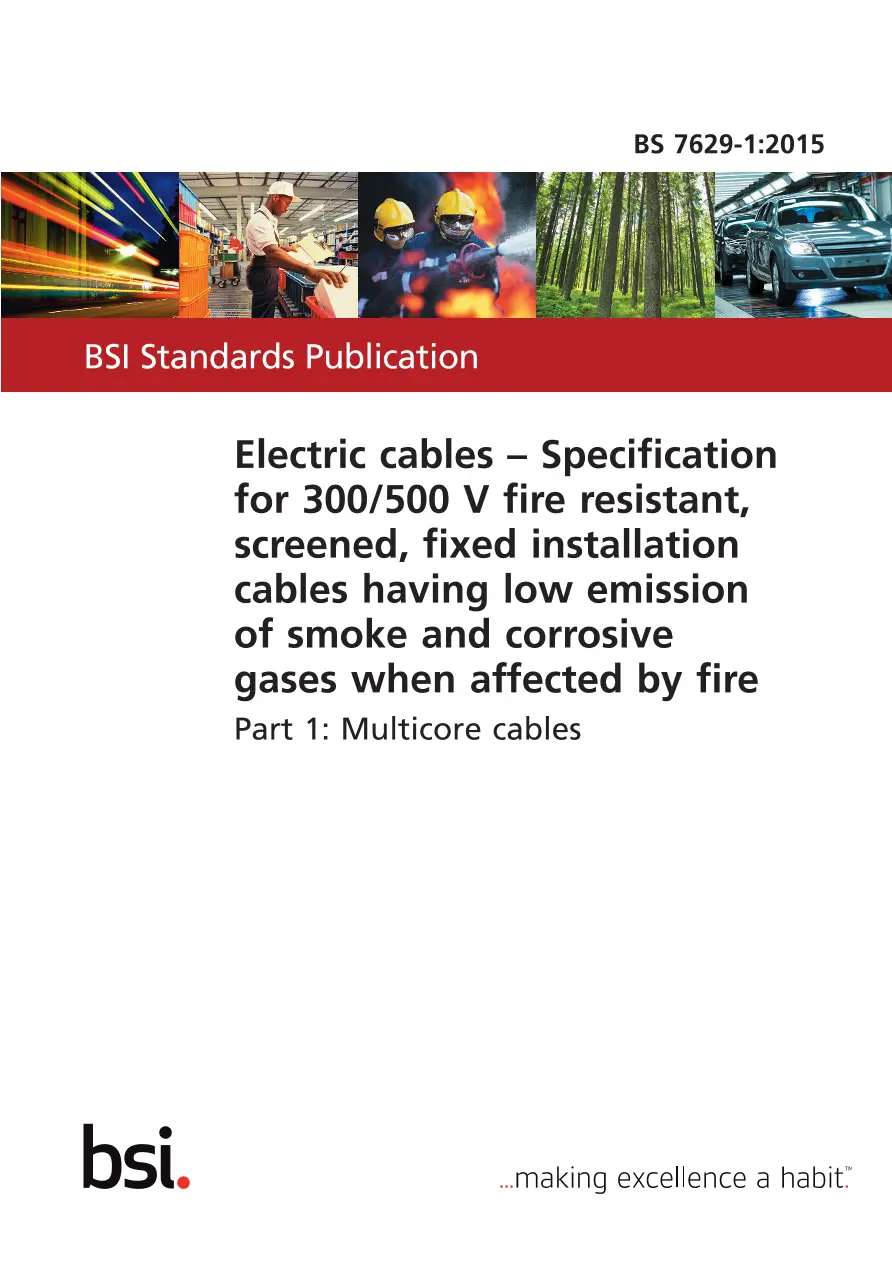

BS 7629-1:2015 specifies requirements and test methods for theconstruction and performance of cables which:
- have thermosetting insulation and a rated voltage of 300/500 V;
- provide resistance to fire (circuit integrity), including with mechanical shockand with water, as measured by performance in a standard test or tests;
- emit limited amounts of smoke and corrosive gases when burned asmeasured by a standard test; and
- are primarily intended for use in emergency lighting, fire detection and firealarm system circuits.
The circuit integrity performance under fire conditions is assessed on the basis oftests which measure resistance to fire with mechanical impact and water spray(Categories: Standard 30, Standard 60 and Enhanced 120).
NOTE 1 BS 5266-1 and BS 5839-1 give recommendations and guidance on thefactors to be taken into account in the planning, design, installation, commissioningand maintenance of emergency lighting, fire detection and fire alarm systems forbuildings, respectively.It is applicable to 2-core, 3-core and 4-core circular cables with an uninsulatedfull size circuit protective conductor, and 7-core, 12-core and 19-core circularmulti-core auxiliary cables with an uninsulated drain wire of not less than0.5 mm2. All cables contain a metallic layer, which provides electrostaticscreening.The cables are suitable for operation at a maximum sustained conductortemperature of 70 °C and for a maximum short-circuit conductor temperatureof 250 °C (for a maximum period of 5 s).

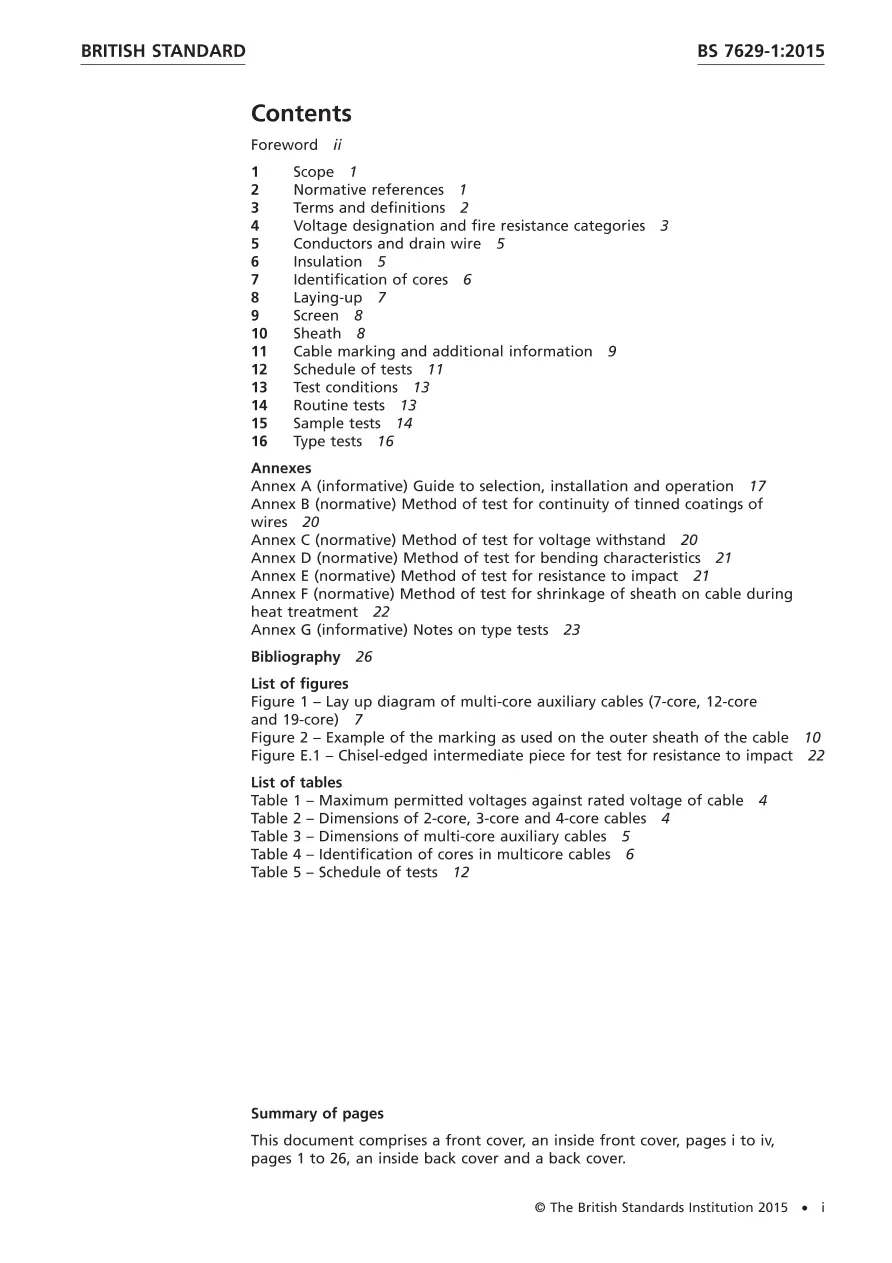

NOTE 2 Annex A gives recommendations for the selection, installation andoperation of cables, Annex B gives the method of test for continuity of tinnedcoating of wires, Annex C gives the method of test for voltage withstand, Annex Dgives the method of test for bending characteristics, Annex E gives the method oftest for resistance to impact, Annex F gives the method of test for shrinkage ofsheath and Annex G gives notes on type tests.Cross References:BS 7655-1.2BS 7655-6.1BS 7671BS 8434-2BS EN 50200 BS EN 50363-1BS EN 50363-5BS EN 50395BS EN 50396BS EN 60228BS EN 60332-1-2:2004BS EN 60754-1BS EN 60811-502BS EN 60811-506BS EN 61034-1BS EN 61034-2BS EN 62230IEC 60050-461BS 5266-1BS 5839-1BS 6387BS 8519BS EN 60079-14The Electricity Safety, Quality and ContinuityRegulations 2002 Replaces BS 7629-1:2008 which remains current.
