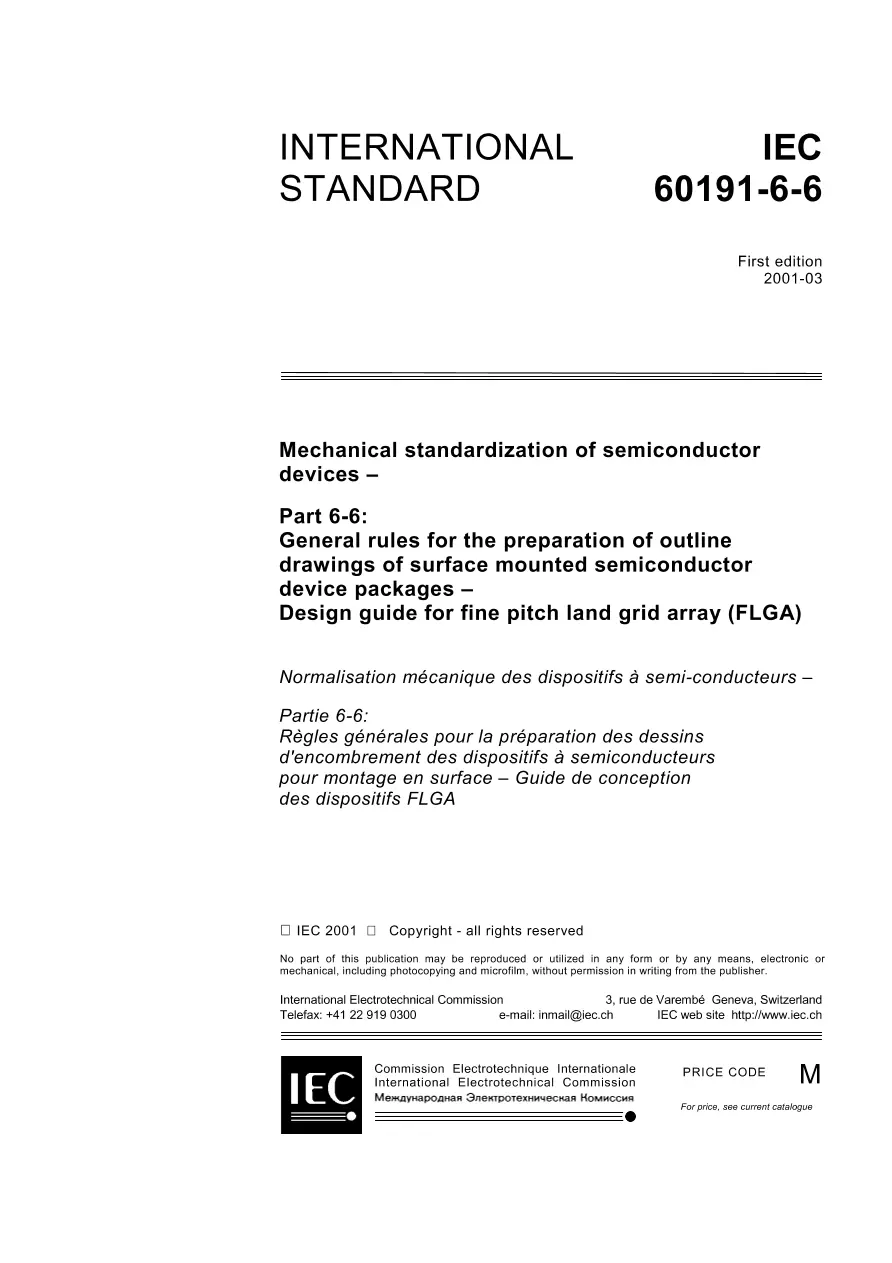

IEC 60191-6-6 Ed. 1.0 en:2001

Mechanical standardization of semiconductor devices - Part 6-6: General rules for the preparation of outline drawings of surface mounted semiconductor device packages - Design guide for fine pitch land grid array (FLGA)

International Electrotechnical Commission , 03/22/2001

Publisher: IEC

File Format: PDF

$37.00$74.00

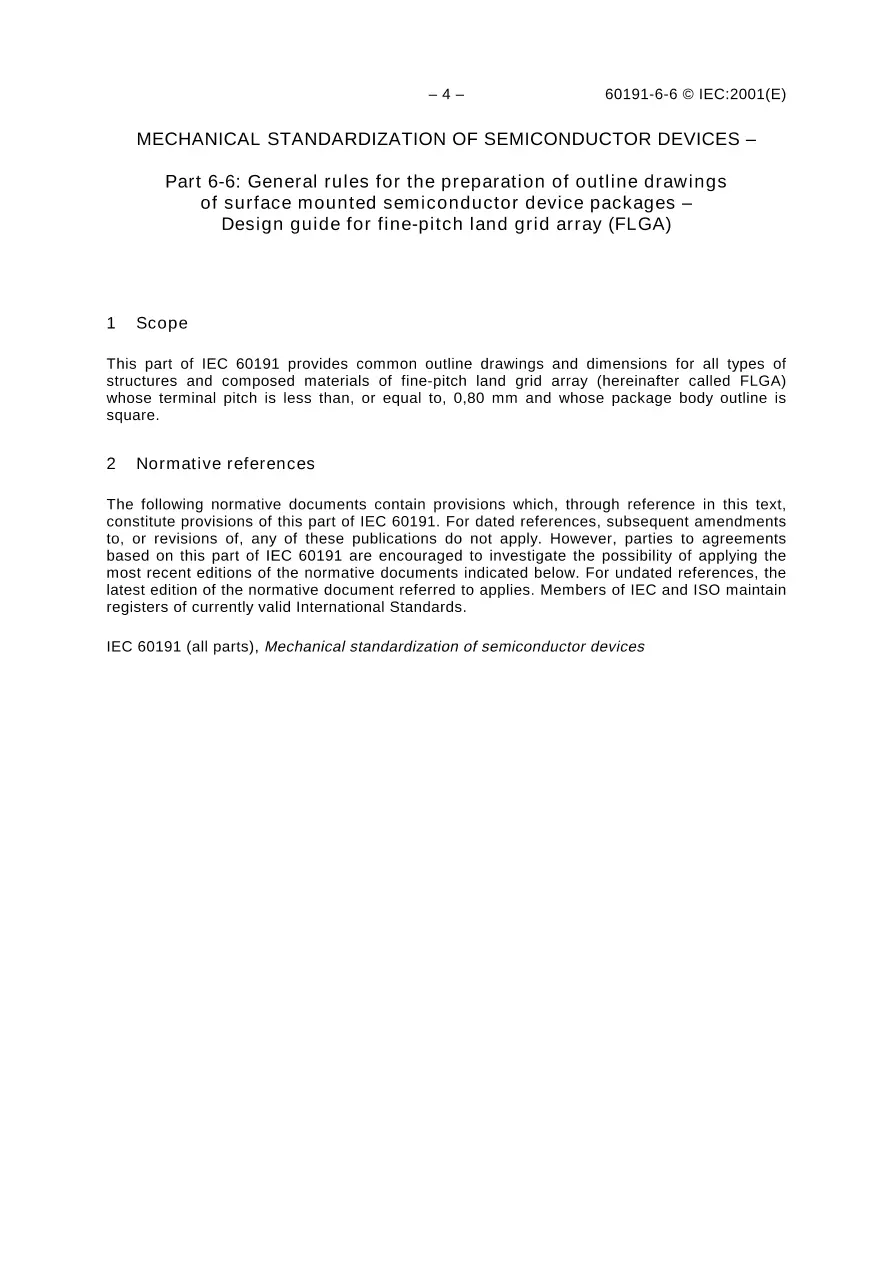

Provides common outline drawings and dimensions for all types of structures and composed materials of fine-pitch land grid whose terminal pitch is less than, or equal to, 0,80 mm and whose package body outline is square.

Published: 03/22/2001

Pages: 12

File Size: 1 file , 120 KB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
