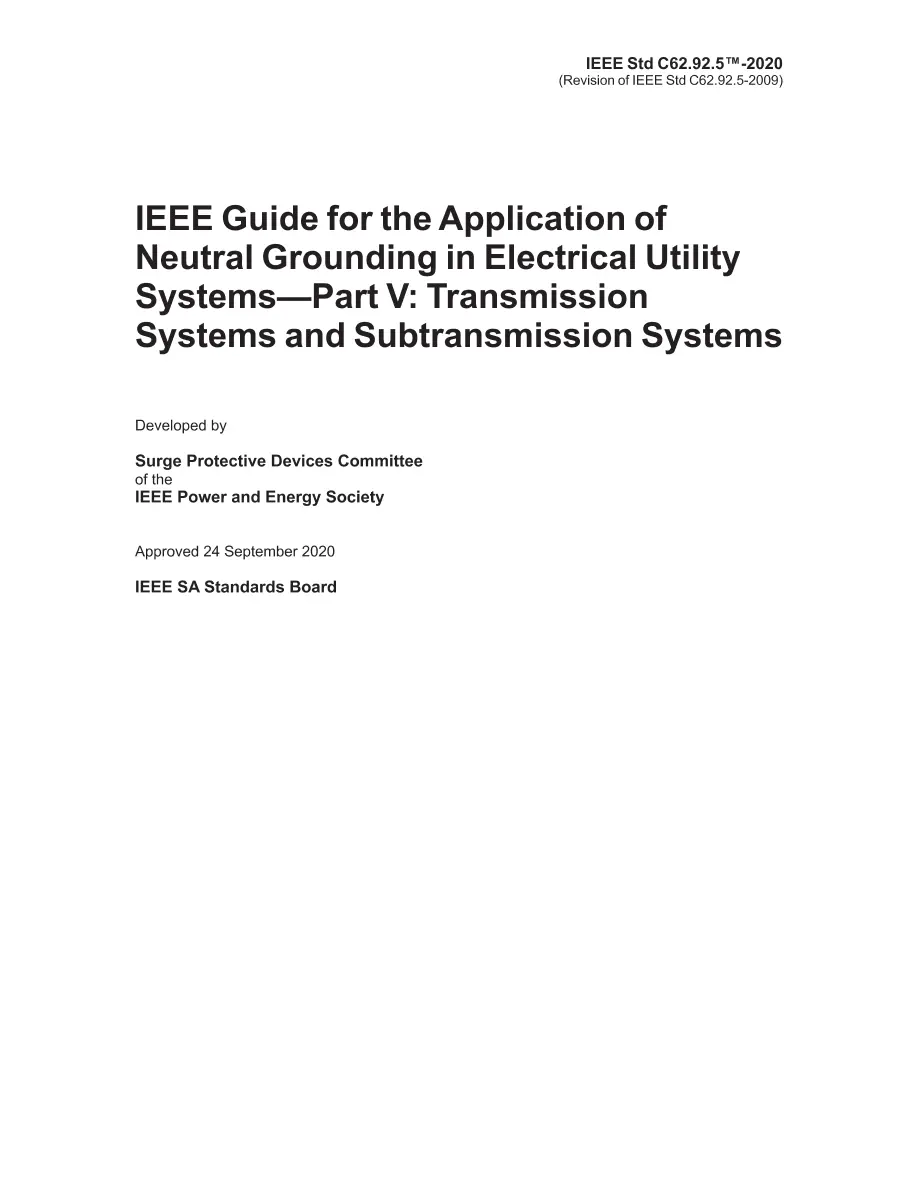

IEEE C62.92.5-2020

IEEE C62.92.5-2020 PDF

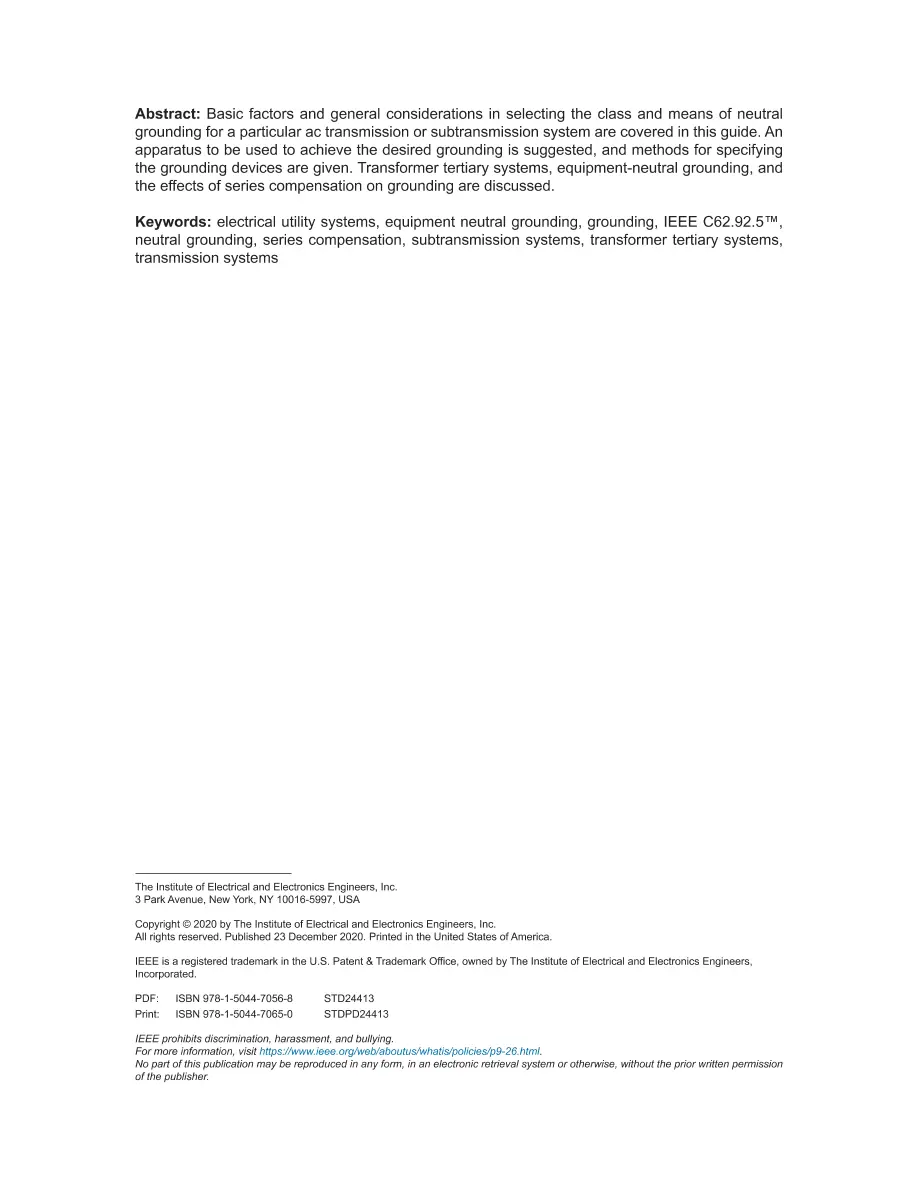

The scope of this document is to provide the basic factors and general considerations in selecting the class and means of neutral grounding for a particular ac transmission or subtransmission system, and the suggested method and apparatus to be used to achieve the desired grounding. Definitions of grounding terms used in this part of the guide can be found in IEEE Std C62.92.1(TM). The purpose of this document is to provide the user with insight on the basic factors and general considerations in selecting the class and means of neutral grounding for a particular ac transmission or subtransmission system. An apparatus to achieve the desired grounding is suggested, and methods for specifying the grounding devices are given. Revision Standard - Active. Basic factors and general considerations in selecting the class and means of neutral grounding for a particular ac transmission or subtransmission system are covered in this guide. An apparatus to be used to achieve the desired grounding is suggested, and methods for specifying the grounding devices are given. Transformer tertiary systems, equipment-neutral grounding, and the effects of series compensation on grounding are discussed.
