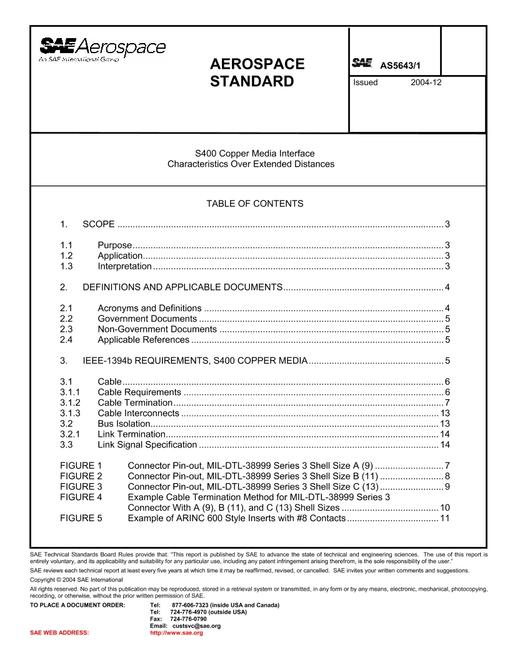

• SAE AS5643/1

SAE AS5643/1

S400 Copper Media Interface Characteristics Over Extended Distances

SAE International , 12/30/2004

Publisher: SAE

File Format: PDF

$47.00$94.00


This SAE Aerospace Standard (AS) establishes guidelines for the use of IEEE-1394b as a data bus network in military and aerospace vehicles. It encompasses the data bus cable and its interface electronics for a system utilizing S400 over copper medium over extended lengths. This document contains extensions/restrictions to “off-the-shelf” IEEE-1394 standards, and assumes that the reader already has a working knowledge of IEEE-1394.

This document does not identify specific environmental requirements (electromagnetic compatibility, temperature, vibration, etc.); such requirements will be vehicle-specific and even LRU-specific. However, the hardware requirements and examples contained herein do address many of the environmental conditions that military and aerospace vehicles may experience. One should reference the appropriate sections of MIL-STD-461E for their particular LRU, and utilize handbooks such as MIL-HDBK-454A and MIL-HDBK-5400 for guidance.

SAE AS5643/1 History

SAE AS5643/1A

SAE AS5643/1A

$56.00 $113.00

SAE AS5643/1

SAE AS5643/1

$47.00 $94.00
