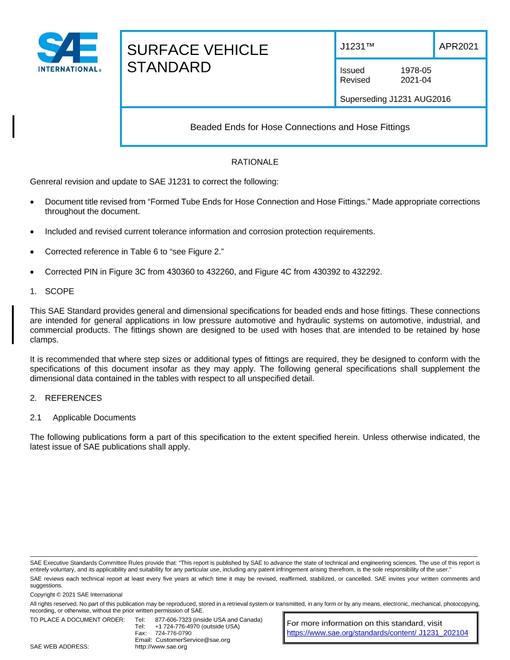

This SAE Standard provides general and dimensional specifications for beaded ends and hose fittings. These connections are intended for general applications in low pressure automotive and hydraulic systems on automotive, industrial, and commercial products. The fittings shown are designed to be used with hoses that are intended to be retained by hose clamps.
It is recommended that where step sizes or additional types of fittings are required, they be designed to conform with the specifications of this document insofar as they may apply. The following general specifications shall supplement the dimensional data contained in the tables with respect to all unspecified detail.
SAE J1231_202104 History
SAE J1231_202104
$54.00 $108.00
SAE J1231_201608
$45.00 $90.00
SAE J1231_201105
$45.00 $90.00
SAE J1231_200101
$43.00 $87.00
