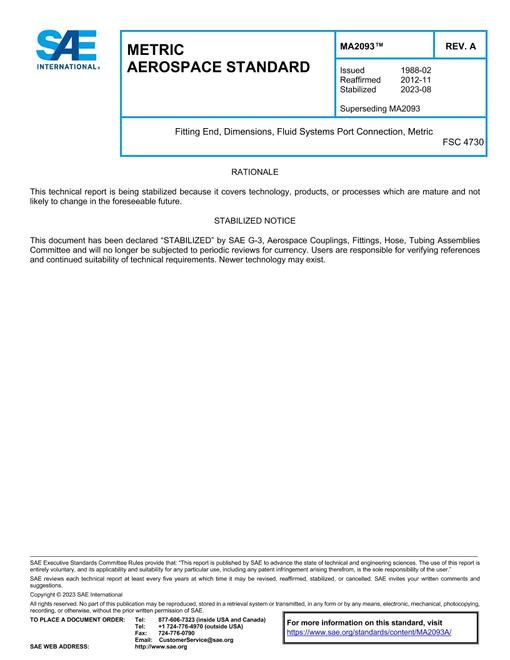

SAE MA2093A

Fitting End, Dimensions, Fluid Systems Port Connection, Metric (Stabilized: Aug 2023)

SAE International , 08/01/2023

Publisher: SAE

File Format: PDF

$28.00$57.00

Description

SAE MA2093A PDF

This design standard specifies the dimensions of the externally threaded fitting end to be assembled into an internally threaded fluid system port, using an elastomeric o-ring for sealing. Fitting end dimensions and o-ring sizes agree with ISO 7320-1985.

Published: 08/01/2023

File Size: 1 file , 1.6 MB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
