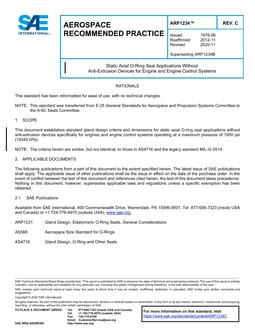

SAE ARP1234C

Static Axial O-Ring Seal Applications Without Anti-Extrusion Devices for Engine and Engine Control Systems

SAE International , 11/09/2020

Publisher: SAE

File Format: PDF

$55.00$110.00

Description

This document establishes standard gland design criteria and dimensions for static axial O-ring seal applications without anti-extrusion devices specifically for engines and engine control systems operating at a maximum pressure of 1500 psi (10345 kPa).

NOTE: The criteria herein are similar, but not identical, to those in AS4716 and the legacy standard MIL-G-5514.

Published: 11/09/2020

File Size: 1 file , 1.1 MB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
