SAE ARP1234E

Static Axial O-Ring Seal Applications Without Anti-Extrusion Devices for Engine and Engine Control Systems

SAE International , 04/01/2024

Publisher: SAE

File Format: PDF

$62.00$124.00

Description

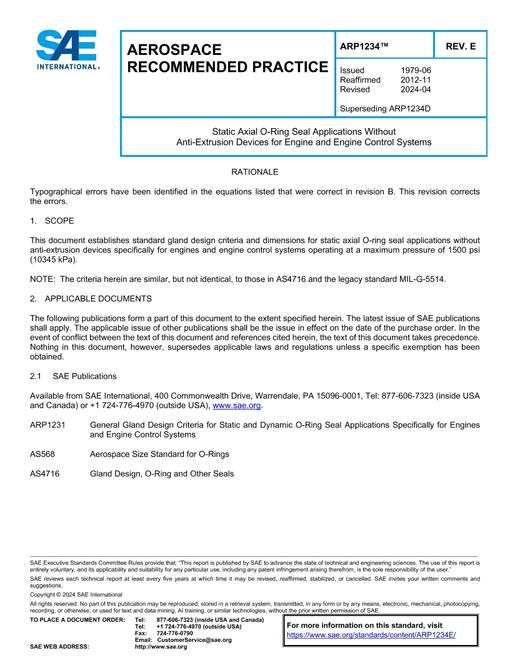

SAE ARP1234E PDF

This document establishes standard gland design criteria and dimensions for static axial O-ring seal applications without anti-extrusion devices specifically for engines and engine control systems operating at a maximum pressure of 1500 psi (10345 kPa).

NOTE: The criteria herein are similar, but not identical, to those in AS4716 and the legacy standard MIL-G-5514.

Published: 04/01/2024

File Size: 1 file , 1.1 MB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
