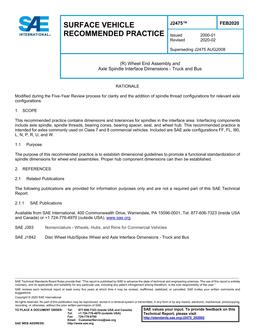

SAE J2475_202002

Wheel End Assembly and Axle Spindle Interface Dimensions - Truck and Bus

SAE International , 02/13/2020

Publisher: SAE

File Format: PDF

$34.00$69.00

Description

This recommended practice contains dimensions and tolerances for spindles in the interface area. Interfacing components include axle spindle, spindle threads, bearing cones, bearing spacer, seal, and wheel hub. This recommended practice is intended for axles commonly used on Class 7 and 8 commercial vehicles. Included are SAE axle configurations FF, FL, I80, L, N, P, R, U, and W.

Published: 02/13/2020

Pages: 6

File Size: 1 file , 340 KB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
