SAE J2475_202407

Wheel End Assembly and Axle Spindle Interface Dimensions - Truck and Bus

SAE International , 07/26/2024

Publisher: SAE

File Format: PDF

$34.00$69.00

Description

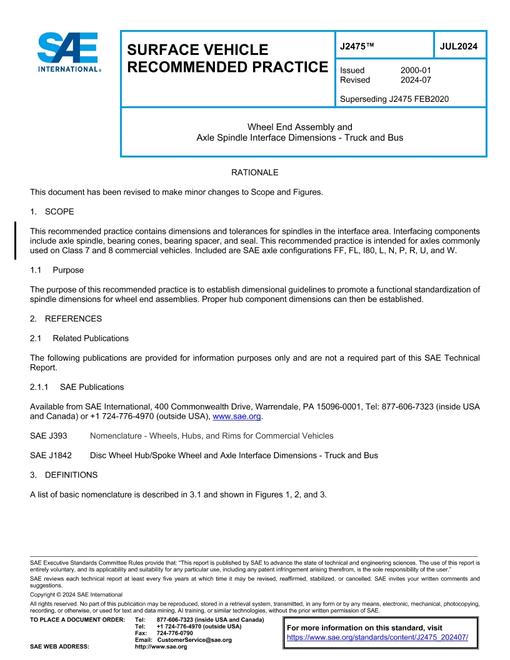

SAE J2475_202407 PDF

This recommended practice contains dimensions and tolerances for spindles in the interface area. Interfacing components include axle spindle, bearing cones, bearing spacer, and seal. This recommended practice is intended for axles commonly used on Class 7 and 8 commercial vehicles. Included are SAE axle configurations FF, FL, I80, L, N, P, R, U, and W.

Published: 07/26/2024

File Size: 1 file , 370 KB

Language: English

Note: This product is unavailable in Ukraine, Russia, Belarus
